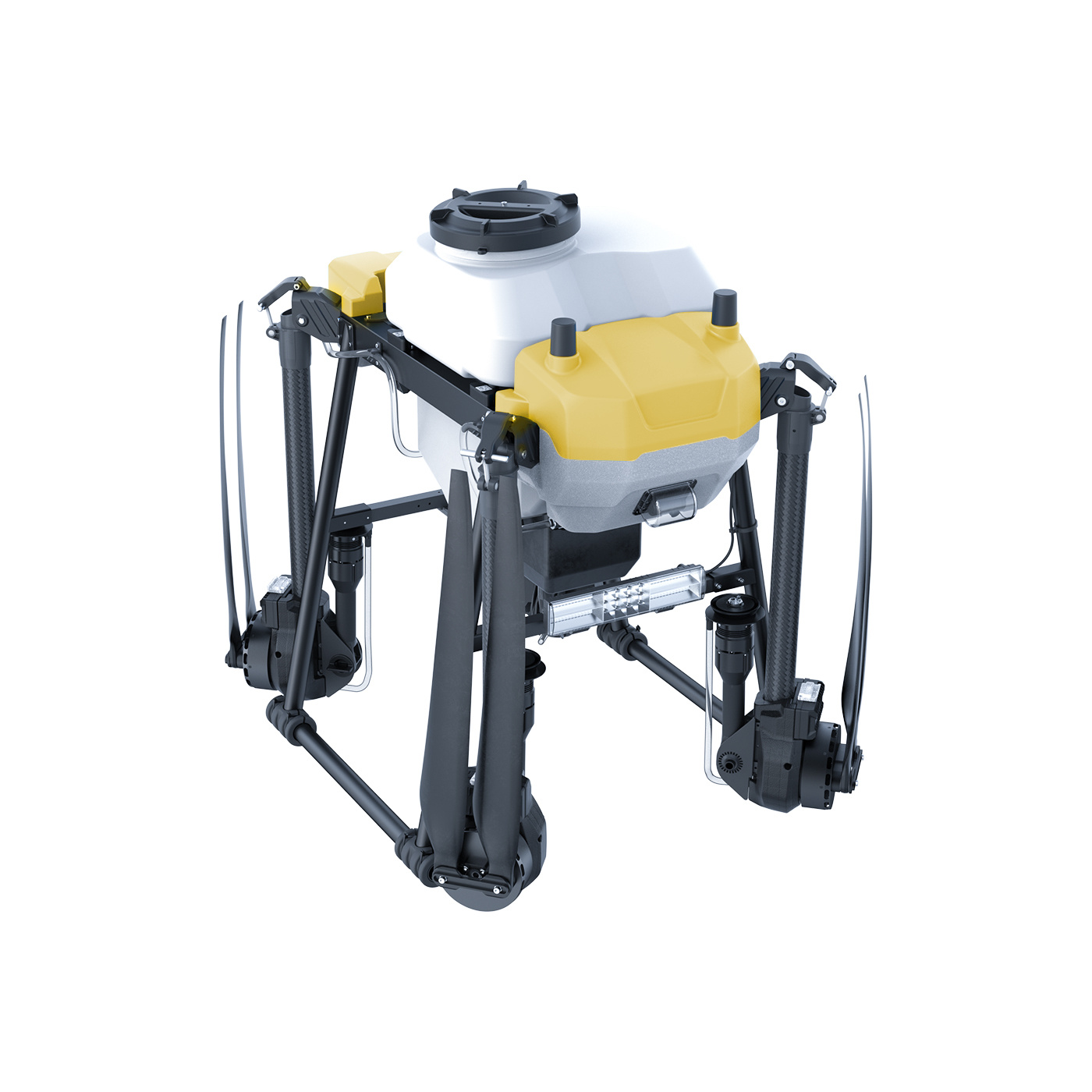

AD50-Agricultural Drone

AD50-Agricultural Drone

Keywords:

agricultural UAV, agriculture drone, 50L/60KG

Category:

Agriculture Drone

TEL. +86 532 8838 1188

CONTACT US
DESCRIPTION PARAMETER



Agricultural Drone, creating a good harvest



Update firmly

Standard 4 centrifugal nozzles

Double atomization

Intelligent route

50L liquid, 70L solid



Efficient, stable and durable

Stronger driving force


50L spraying box, 70L fertilizer box
Vertical folding arms, fast and easy transition
Module design, quick maintenance
IP67 protected, aviation aluminum
56 inch carbon fibre and nylon propellers, solid and anti-corrosion
Larger load capacity, maximum take-off weight 107kg
Operating speed up to 13.5 m/s



Double atomization centrifugal nozzle

Upgrade firmly


Fine atomization, supports range of 50-500μm
High flow rate up to 12L/min
Inner rotor high efficiency brush-less motor		 图片名称 20000mAh HD display remote control, with ergonomic handle
Floating type plug of battery, reduce vibration
HD FPV, tilting up to 90°
Auxiliary point mapping, intelligent breakpoints
High precision weighing system, real-time residual material detection





Efficient, stable and durable

50L spraying box, 70L fertilizer box
Vertical folding arms, fast and easy transition
Module design, quick maintenance
IP67 protected, aviation aluminum



Stronger driving force

56 inch carbon fibre and nylon propellers, solid and anti-corrosion
Larger load capacity, maximum take-off weight 107kg
Operating speed up to 13.5 m/s

Double atomization centrifugal nozzle

Fine atomization, supports range of 50-500μm
High flow rate up to 12L/min
Inner rotor high efficiency brush-less motor



Upgrade firmly

20000mAh HD display remote control, with ergonomic handle
Floating type plug of battery, reduce vibration
HD FPV, tilting up to 90°
Auxiliary point mapping, intelligent breakpoints
High precision weighing system, real-time residual material detection



Wheelbase

2260mm

Drone weight with battery

55kg

Battery capacity

30000mAh(68.4V)

Charging time

13mins(20%~95%)

Hovering time

≥18mins (no load)
≥7.5mins (full load)

Hovering accuracy

Level ±10cm
Vertical ±10cm（with RTK）

Pesticide tank volume

50L

Fertilizer tank volume

70L

Nozzle mode

Double atomization centrifugal

Flow rate

12L/min(single pump)

24L/min(double pumps)

Atomization range

50~500μm

Pump type

Diaphragm pump

Spray width

8~10meters(varies with height)

Spreading mode

Centrifugal disc

Spreading width

6~15meters

Spreading speed

80kg/min
