Continuous work

Unrestricted by visibility, continuous work, improving the efficiency of agricultural machinery operations.

Raise the efficiency of the land use

Intelligent planning of operation paths, centimeter-level precision control reducing heavy and missed tillage, and maximizing land utilization.

Reduce labor intensity

Excessively reduce the attention on the forward path and have more energy to pay attention to the operating status of agricultural machinery.

Reduce labor requirements

Lower the driver's technical threshold and improve the quality of work.

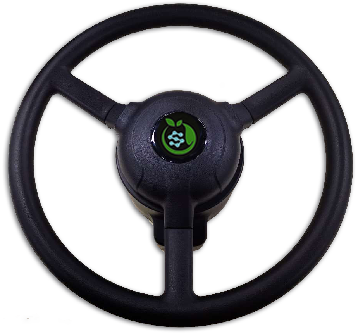

Motor steering wheel

Ultra light and thin body design
Customized steering wheel for comfortable handling
High performance movement, high torque, low noise, and good heat dissipation

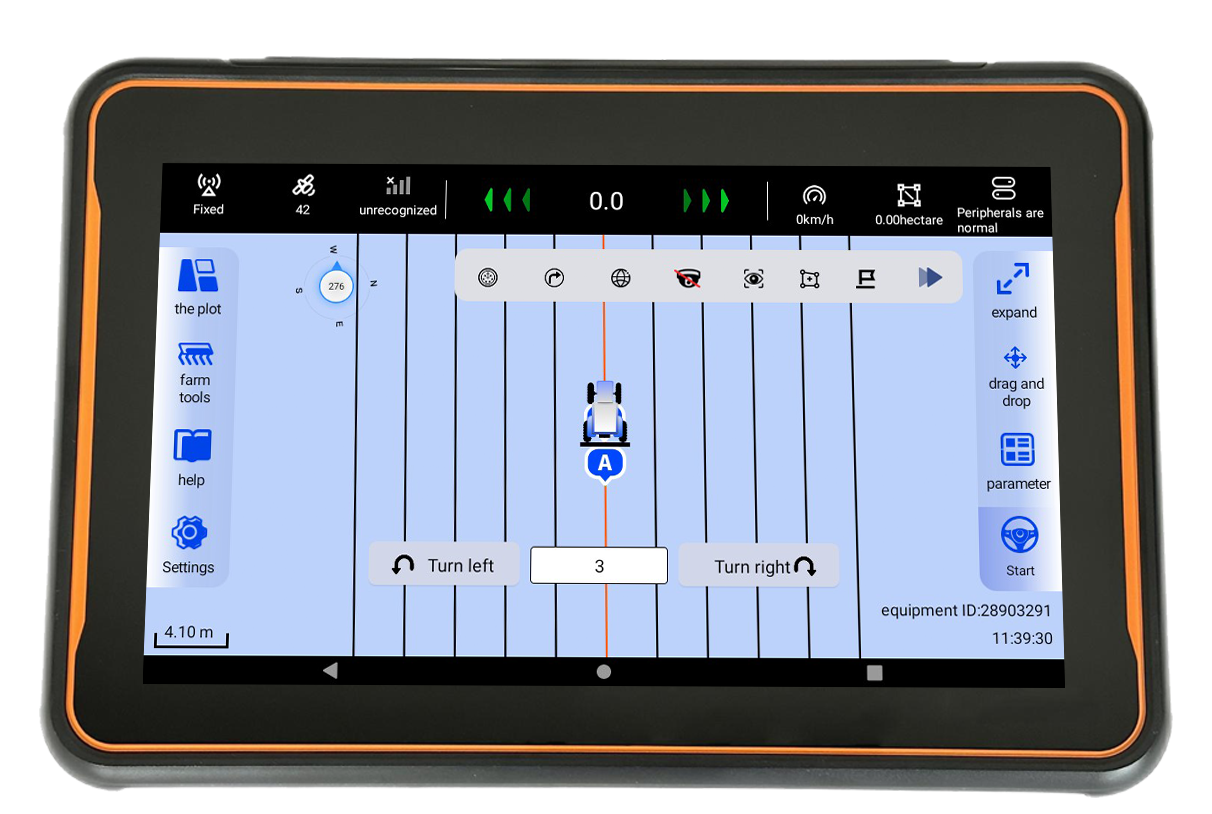

Intelligent navigation terminal

10.1 inch high-definition touch screen
Driving controller
Beidou/GPS/GLONASS/GALILEO/QZSS high-precision positioning board card
4G all network communication network module
Vehicle level processor

Antenna

Supports single or dual antenna solutions, suitable for ultra low speed operations
Integrated gyroscope for slope and ultra high speed operations
Integrated electronic compass
Compatible with two options: motor steering wheel and hydraulic
High-strength PC shell for durability

Gyroscope

Non contact angle sensor, technologically advanced
Calibration free, easy to install
All metal shell, collision resistant
Compatible with angle free sensor solutions

Body attitude sensor

Terrain compensation technology, fearless of longitudinal and transverse slopes, ensuring navigation accuracy
IP67 protection level, compact size, and convenient installation(integrated in the GNSS antenna)

Mobile base station

Highly integrated design with built-in 4G, WiFi module, and three-axis acceleration sensor
Stable signal transmission, effective transmission distance greater than 3km
Supports hot swapping, ultra-low power consumption, powered by power bank
Durable body, high-strength PC shell, IP67 protection standard, resistant to 1m free fall

Back camera

Real-time display of implements operation status on the terminal
High-definition and intuitive screen
Reduce driving safety hazards and fatigue

Working patterns

AB straight line, parallel curve, diagonal rake, circular pattern, back pattern.

Working applications

Can be applied to operational scenarios such as ridging, leveling, sowing, spraying, film laying, harvesting, and transplanting.

Turn around patterns

Supports fishtail, pear, bow, and semi-circular U-turn modes.
